Machining large-dimension valves involves challenges that go beyond machine capacity. When working with components weighing several tonnes and with large diameters, logistics, handling, and quality control become critical factors. Every technical decision directly impacts dimensional stability, personnel safety, and deadline compliance, making comprehensive planning essential from the outset of the project.
Logistical Planning and Workpiece Preparation
In the machining of large components, managing the raw material and preparing the workpiece are the first critical steps. High-tonnage pieces, such as valve bodies, typically have substantial thicknesses, though some may be less structurally stable. In the latter case, mass concentrations can generate internal stresses within the material. These stresses may be released during material removal, causing deformations that are difficult to correct later. Therefore, before beginning any operation, the most suitable machining sequence, support distribution, and lifting points are analysed to ensure that every movement and fixture minimises deformation and preserves the geometric integrity of the piece.
Internal logistics also require detailed planning. Coordination between machining, welding, inspection, and storage areas must be optimised to avoid unnecessary transfers and unproductive time. For large components, any movement consumes resources and carries additional risk, so every internal transport is studied with the same care as the machining operations themselves.
Safe Handling and Dimensional Control

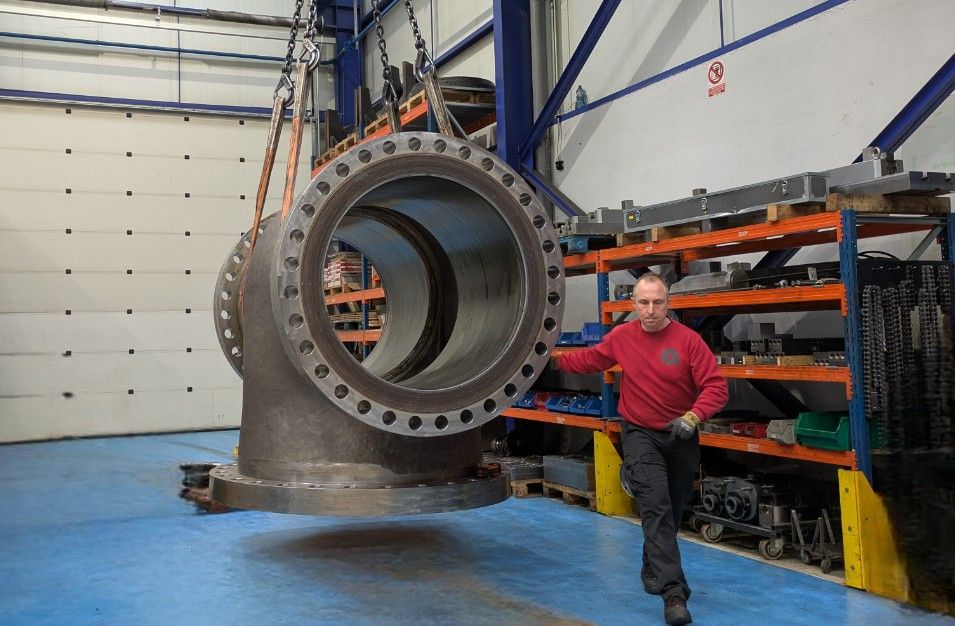

Handling multi-ton components is not only a matter of safety but also of precision. The design of tooling and clamping systems is tailored to the geometry and centre of gravity of each valve to distribute loads evenly. Incorrect clamping can cause bending, vibration, or elastic deformation, affecting the coaxiality and parallelism of critical surfaces such as seating faces or shaft housings. In large valve machining, every rotation or repositioning is carefully planned to reduce risk and preserve functional tolerances.
Dimensional and geometric control forms part of this strategy. Tight tolerances in critical areas and large-scale dimensions are particularly sensitive: even a small positioning or tool adjustment error can result in significant deviations in the final finish. Progressive verification throughout the machining phases is therefore essential, allowing any deviations to be detected before the cycle is complete, and the machining strategy to be adjusted if necessary, ensuring repeatability of operations.
Integration of Welding and Complementary Processes
Many large-scale machining projects involve welding operations that must be integrated into the overall planning. Restoration welding allows components to be repaired without producing a complete replacement, while overlay welding reinforces critical areas or incorporates special materials that provide additional properties to the component. Both require thermal control, approved procedures, and subsequent non-destructive testing, such as ultrasonic or penetrant inspections.
Continuous Quality Control
Quality control in the machining of large components is not limited to a final inspection. In high-demand sectors such as energy or nuclear, every stage of the process is accompanied by dimensional checks and material integrity inspections. Non-destructive testing and dimensional control ensure that all critical dimensions and surfaces meet technical specifications, allowing corrective action if deviations from client requirements are detected. This approach reduces risk, improves component reliability, and provides confidence to the manufacturer during assembly and final use.
External Logistics and Final Delivery
Once machining is complete, external logistics are as important as production. Multi-ton components require technical packaging that protects machined surfaces and critical areas during transport. Additionally, careful planning of the transfer is essential, considering optimal transport methods and secure fastening systems to ensure the component reaches the client in perfect condition. Errors at this stage can compromise weeks of work and generate significant additional costs.
Arri: Comprehensive Large-Valve Machining Services
At Arri, we view the machining of large-dimension valves as an end-to-end process. We are involved from the initial phase to plan internal logistics, define handling strategies, integrate complementary operations, and ensure rigorous quality control throughout the manufacturing cycle. Our approach combines experience in machining large components, coordinated technical management, and thorough oversight of every stage, providing truly comprehensive valve machining services.
If your project requires expertise in large-scale machining and a team capable of managing every phase of the process, contact us. We will be pleased to review your case and provide solutions tailored to your specific requirements.
